TRX65D-C/5P, đồng hồ đo lưu lượng khí Aichi Tokei Denki

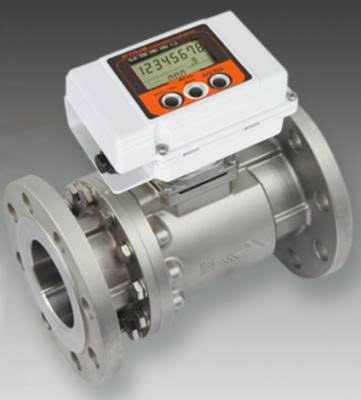

Aichi Tokei Denki TRX65D-C/5P là đồng hồ đo lưu lượng khí bằng sóng siêu âm (Ultrasonic Flow Meter), chuyên dùng cho khí nén và khí nitơ (N₂) trong hệ thống đường ống công nghiệp.
Thông tin chính
- Hãng: Aichi Tokei Denki – Nhật Bản
- Model: TRX65D-C/5P
- Loại: Ultrasonic Flow Meter for Air
- Đường kính danh nghĩa: 65 mm (65A)
- Môi chất: khí nén nhà máy, có thể dùng cho nitơ
- Nguồn: loại External Power Supply, khoảng 24 VDC ±10%
- Cáp: phiên bản 5 m hoặc 20 m
- Cấp bảo vệ: IP64
- Lắp đặt: trong nhà hoặc ngoài trời
- Kèm installation kit gồm bulông, gasket, centering collars và khóa lục giác M4
Model Aichi Tokei Denki
| TRX65D-C/5P (with 5m cable) Aichi Tokei Denki Ultrasonic Flow Meter For Air | A20N-3 Aichi Tokei Denki Pressure-reducing Valve A20N-3 (instead of old model C13N-005-3) *Configuration for 1st A20N-3: |
| TRX50R-C/5P (with 5m cable) Aichi Tokei Denki Ultrasonic Flow Meter For Air *Gas type: factory air, RS485 type spec., with installation kit (bolt set, gasket, centering collars, M4 hexagonal wrench), with external cable 5m | A20N-1NP Aichi Tokei Denki Pressure-reducing Valve *P1: 5-10 kPa, P2: 1.5-4.5 kPa, Qmax: ?, Gas: ? Please let us know Qmax and Gas type when you order |
| UZ50-500-BT-R-13A Aichi Tokei Denki Ultrasonic Flow Meter for Fuel Gas Control * Built-in battery type type * Conversion flow rate type 500kPa * Flow direction: right to left * Gas type: 13A | ND05-NATAAC-RC Aichi Tokei Denki Flow Sensor *For water and hot water |
| TBX30/R4 Aichi Tokei Denki Turbine Gas Meter *Built-in lithium battery type *Connection size: 40A (Rc1・1/2） *Flow direction: right to left | ND05-TATAAA-RC Aichi Tokei Denki Flow Sensor *For water and chemical fluids |
| TBX-SS-B Aichi Tokei Denki External Connection Cable for TBX meter *Can be used for built-in lithium battery type TBX meter only *2m cable | UX32-100DC-L-PRO Aichi Tokei Denki Ultrasonic Flow Meter UX32 (With temperature and pressure compensation) *External power supply type (DC24V) |
| TBX100F/D Aichi Tokei Denki Turbine Gas Meter *Built-in lithium battery type *Flange connection *Flow direction: top to bottom | UX32-100DC-D-PRO Aichi Tokei Denki Ultrasonic Flow Meter UX32 (With temperature and pressure compensation) *External power supply type (DC24V) |
| TBX30D/L4 Aichi Tokei Denki Turbine Gas Meter *External power supply type *Connection size: 40A (Rc1・1/2) *Flow direction: left to right | UX32-0DC-L-PRO Aichi Tokei Denki Ultrasonic Flow Meter UX32 (Non-temperature and pressure compensation) *External power supply type (DC24V) |
| A25P-2 Aichi Tokei Denki Proportiona Valve *P1: 10 kPa, P2: 0-7 kPa, Qmax: 12Nm3/h, Gas: LPG | UX32-0DC-D-PRO Aichi Tokei Denki Ultrasonic Flow Meter UX32 (Non-temperature and pressure compensation) *External power supply type (DC24V) |
| C40N-100-1 Aichi Tokei Denki Governor *P1: 100 kPa, P2: 10 kPa, Qmax: 80 m3/h, Gas: C3H8 | TBX30D/L3 Aichi Tokei Denki Turbine Gas Meter *External power supply type *Connection size: 32A (Rc1・1/4) *Flow direction: left to right |
| TBZ300-3.5 Aichi Tokei Denki Turbine Gas Meter *Built-in battery type *Temperature and pressure compensation, 350kPa *Flow direction: Please let us know *DANGEROUS GOODS | TBZ300-0 Aichi Tokei Denki Turbine Gas Meter *Built-in battery type *Actual flow rate *Flow direction: Please let us know *NON DANGEROUS GOODS |
